Factory Sale Various Widely Used XF7800 Full Digital Color Doppler 4d Ultrasound Trolley

Short Description

I Functional Features

*THI(Tissue Harmonic Imaging)
*Real-time 2D and Doppler Double Synchronization.
*Real-time 2D ,Doppler and Color triple synchronization.
*Free hand 3D imaging(Optional)

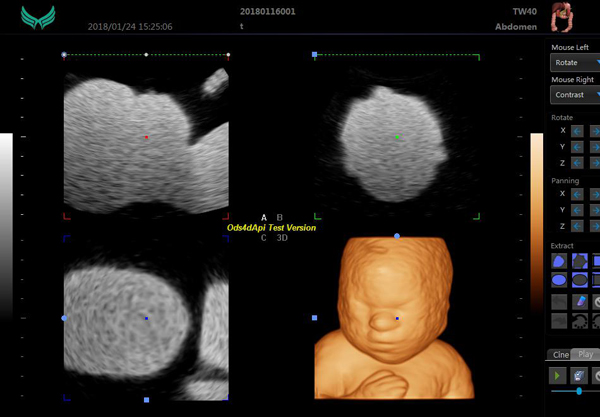

*Four-dimensional Imaging (4D Optional)
*Automatic measurement and analysis vascular intima
*Compound Imaging
*Probe Interface:Two Active Probe Interface
*Multimedia and peripheral devices:Compact Disc-Recordable,USB portable storage device.

Worthy to try it .

Product Detail

Product Tags

Product Description

Main Functions
Having a full digital beam forming technology
Scanning mode: Convex array, lumen, high-frequency linear array, phased array;
Dynamic range: 0~120dB adjustable;
Display mode: B,B/B,M,B/M,CFM,CMF/B,PDI,B/PW, total eight mode;
Application mode: abdomen, gynecology, obstetrics, superficial organ, urologist, heart and user defined model 1-4, total ten models;
Image mode: digital beam forming, tissue harmonic imaging;
Acoustic output: Mechanical index and thermal index real-time display;
Acoustic power:Step is adjustable, real-time display;
Gray scale: 256 scales;
Depth display: ≥250mm;
B/D dual-purpose: linear array: B/PWD; convex array: B/PWD;
Pseudo color processing: 16 kinds of pseudo color encoding can optional;
Gain adjusts: 8 segments TGC, B/M/D/C is independently adjustable; TGC curve can show and hide automatically;
Image magnification: picture in picture zoom in and zoom part function;
Image processing:Edge enhancement: Multilevel adjustable
Frame average: Multilevel adjustable
Line average: Multilevel adjustable
Focus Optimization: Multilevel adjustable
Gray Restrain: Multilevel adjustable
Gamma correction: Multilevel adjustable
Contrast: Adjustable
Brightness: Adjustable

Self-motion optimize function: Built-in multiple check type, according to different inspection organs, preset best image check
condition, reduce the adjusting operation keys;
One-click optimization function: preset several parameters adjusting focus on a button, a key to realize image fast optimization;
Measurement and calculation: B mode routine measurement:
Distance, circumference, area, volume, angle, ratio, and stenos rate.
M mode routine measurement: Heart rate, time, distance, speed, ratio, etc.
Gynecology measurement: Uterus, cervix, endometrial, ovary, follicular.
Obstetrics measurement:
EGA, ETD, fetal weight estimation, AFI index, OB report (including OB tables).
Cardiology measurement: LV measurement.
Urology measurement:
Prostate volume, displacement volume, bladder capacity, and residual urine output.
PW measurements: Time, speed, Heart Rate, RI, PI, etc.
Other measurement: Slice volume measurement, hip joint angle measurement.

Image storage: Image storage, video storage, cine loop, disk storage capacity≥160G;
Patient data: Medical record management, report inquiry and printing, image video output( HDD ,USB,Optional DVD-RW),built-in ultrasound workstation;
Reporting system: automatic report generation system, and can be full screen characters in both Chinese and English editor;
Output interface: SR323,USB,DICOM interface;
1.3D imaging technology
2. Sound velocity imaging technology optimization
3.Color Doppler Energy(CDE)
4.Pulse Wave Doppler imaging(PW)
5.Color Doppler resolution enhancement
6.Panoramic imaging,space compound imaging
7.Adaptive speckle noise suppression techniques
8.Ergonomic design,All-round display angle adjustment
9.Imaging optimization technology;Compound enhance technology
10.Imaging processing technology
11.Multi-beam parallel processing technology
12.Tissue harmonic imaging
13.Three activated ports,15/17'HR medical monitor
14.One Touch Optimize under different modes

II Others
Displayer: 15 inch LED color display
Running hours: ≥8h;
Input power: ≤320V A;
Host weight: about 75 kg;
Host appearance size:1090x700x1130(lengthx widthx height) (mm3);
III Standard Configuration
1.One host machine
2.15 inch High-resolution display
3.3.5MHZ convex array probe
4.USB port



Delivery and Lead Time

Normally within 10days about. It depends on the quantity.


Our package: English package, Chinese package, neutral package, OEM package

Our Company

Our services:

1. For all your inquires about us or our ultrasounds, we will reply you in detail within 24 hours.
2. We own professional team, have professional attitude to recommend products and services, introduce the products for you.
3. Our products have various type and function,We will recommend you the most suitable devices that according to your requirements;We offer OEM services; Can print your own logo on the products.

4. Our products have one year free warranty, and it is still providing after-sales service after free warranty period. Your satisfaction is our duty! It will be our great honor to serve you. We do hope we can offer you more help in medical field and build the long term business relationship with you.
5. We have very experienced engineers, can help you better use our products.
